Screw Oil PressSeries
6YL-110 Round Row Screw Oil Press Machine
Our 6YL-110 round row screw oil press series includes 5 models:
- High-frame Temperature Control Screw Oil Press
- Automatic Temperature Control Screw Oil Press
- Automatic combined oil press machine
- Screw Oil Press Machine
- Automatic combined oil press with vacuum filter
More Details of 6YL-110 Round Row Screw Oil Press Machine
| Parameter | Specification |

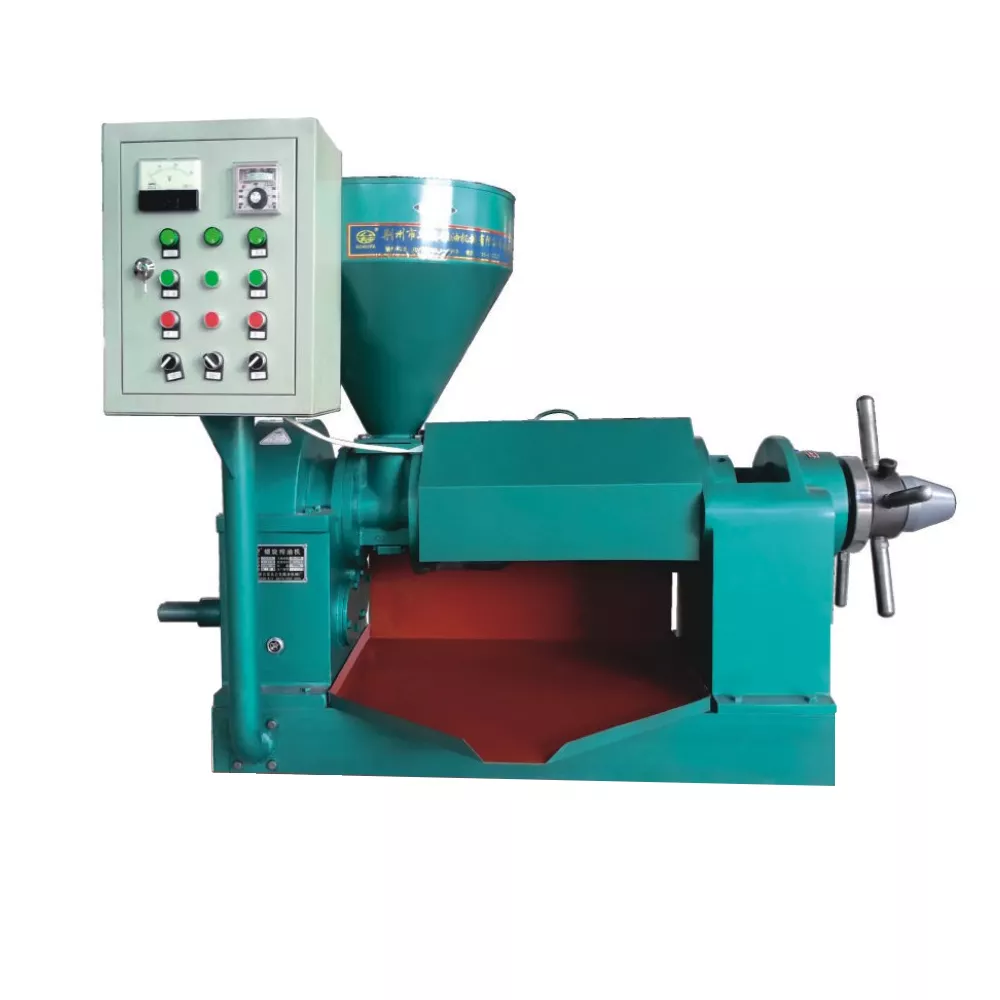

| Product name | 6YL-110 Automatic Temperature Control Screw Oil Press |
| Dimensions (L × W × H) | 1750 × 500 × 1450 mm |
| Weight | 625 kg |
| Voltage | 380 V |
| Capacity | 200–250 kg/h |
| Motor Power | 11 kW (4-Pole Motor) |
| Parameter | Specification |
| Product name | 6YL-110 High-frame Temperature Control Screw Oil Press |
| Dimensions (L × W × H) | 1750 × 500 × 1660 mm |
| Weight | 700 kg |
| Voltage | 380 V |
| Capacity | 200–250 kg/h |
| Motor Power | 11 kW (4-Pole Motor) |
| Parameter | Specification |

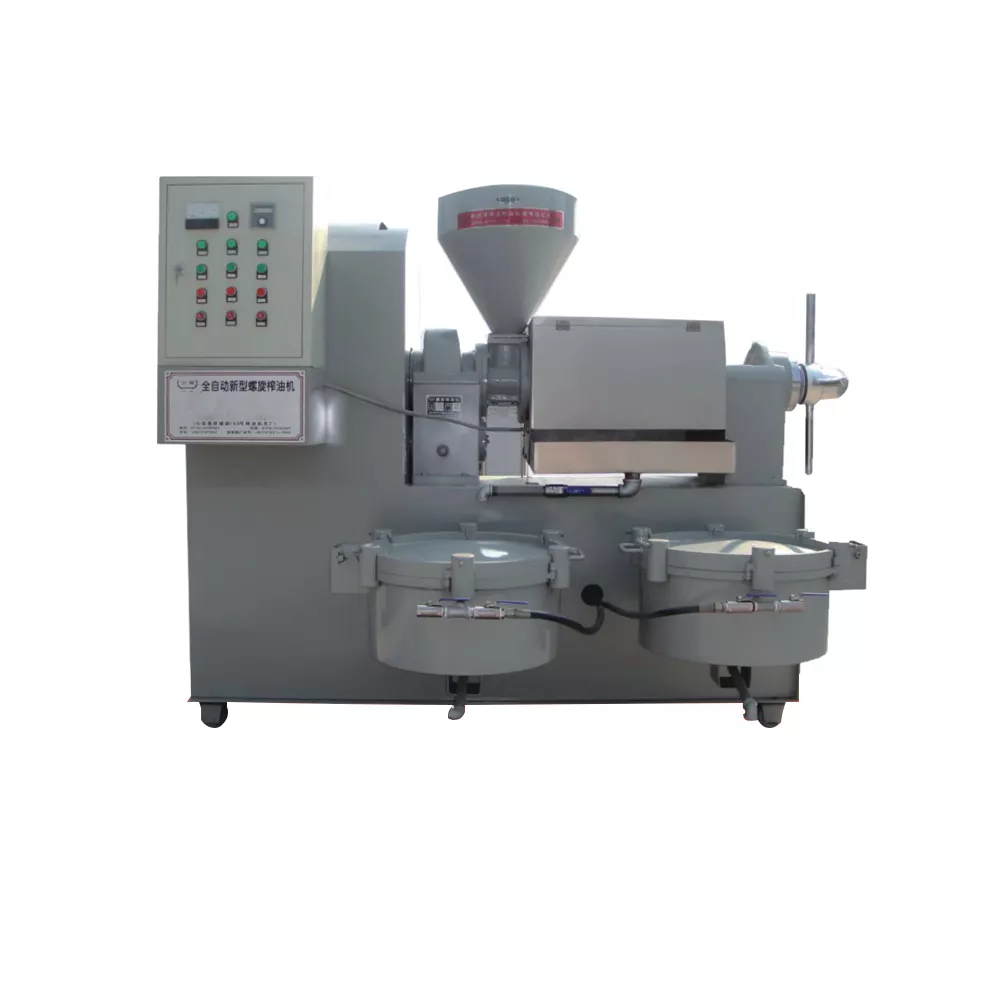

| Product name | 6YL-110 Automatic combined oil press machine |
| Dimensions (L × W × H) | 2200 × 1500 × 1800 mm |
| Weight | 1220 kg |
| Voltage | 380 V |
| Capacity | 200–250 kg/h |
| Motor Power | 11 kW (4-Pole Motor) |
| Parameter | Specification |

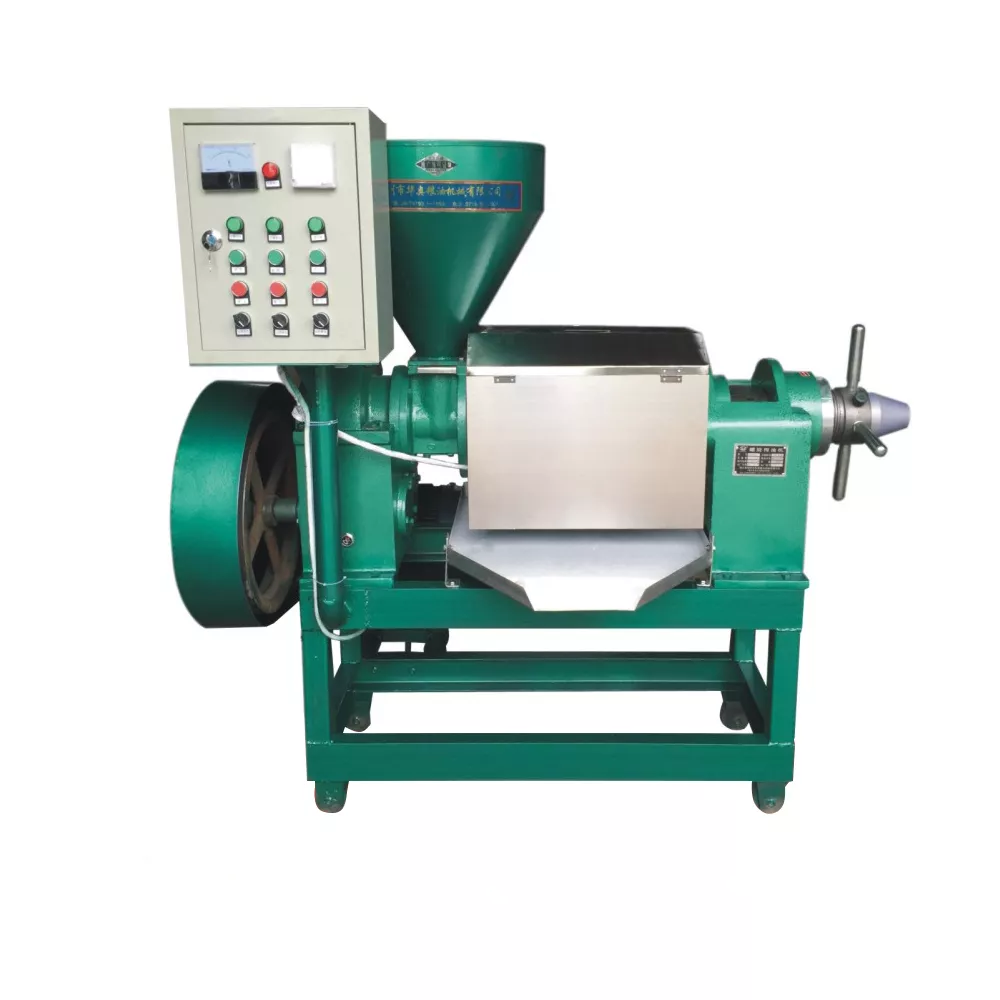

| Product name | 6YL-110 Screw Oil Press Machine |
| Dimensions (L × W × H) | 1750 × 500 × 1450 mm |
| Weight | 600 kg |
| Voltage | 380 V |
| Capacity | 200–225 kg/h |
| Motor Power | 11 kW (4-Pole Motor) |
| Parameter | Specification |

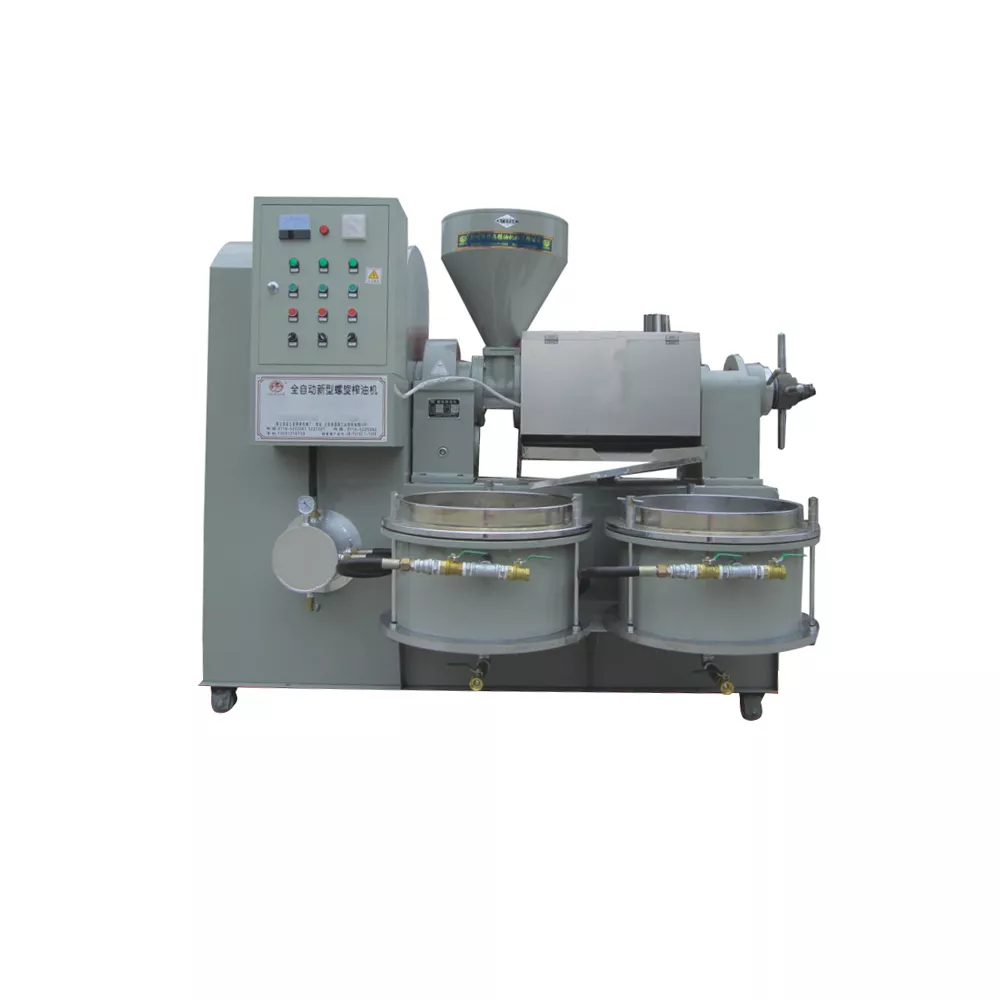

| Product name | 6YL-110 Automatic combined oil press with vacuum filter |
| Dimensions (L × W × H) | 2200 × 1500 × 1800 mm |
| Weight | 1220 kg |
| Voltage | 380 V |
| Capacity | 200–250 kg/h |
| Motor Power | 11 kW (4-Pole Motor) |
