Rice Mill Plant Solution
Complete Rice Milling Plant

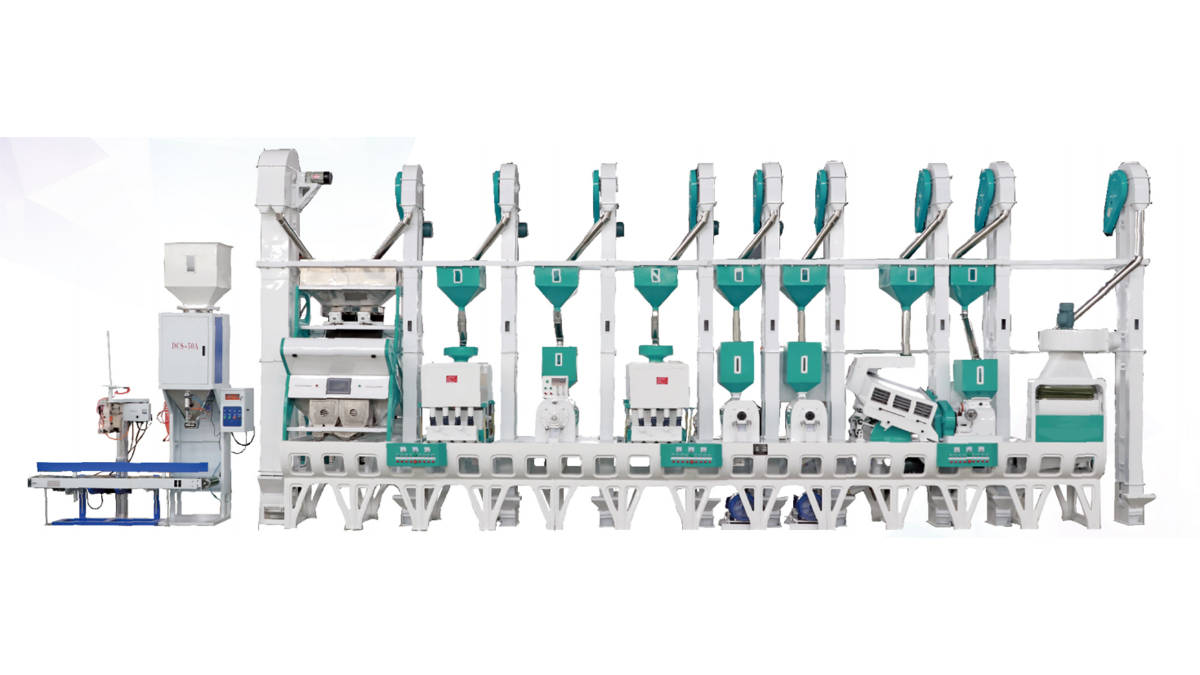

CTNM25 Complete Rice Mill Plant
It is especially suitable for large agricultural cooperatives, professional growers, and commercial rice mill factories. Designed for processing high-quality milled rice for retail and supermarket sales, this complete rice mill plant is an ideal choice for upgrading existing rice milling factories and improving overall processing efficiency and rice quality. We can also provide customized rice mill plant design solutions based on your processing capacity and requirements.
Technical parameters
| Model | Power | Capacity | Weight | Dimension (L*W*H) |
| CTNM25 | 92kW | 25T/D | 4800kg | 11x3x4.1m |
CTNM25 Rice Milling Process
1 Paddy Cleaning
Removes dust, straw, and other impurities from paddy before further processing.
2 Destoning
Separates stones and other heavy particles from the cleaned paddy.
3 Rice Husking
Removes the outer husk from paddy to produce brown rice.
4 Paddy Separation
Separates unhusked paddy from brown rice and returns the paddy for further husking.
5 Rice Whitening
Removes the bran layer from brown rice through two-stage whitening to produce well-milled white rice.
6 Rice Polishing
Smooths the surface of milled rice and improves its appearance and market quality.
7 Rice Grading
Separates rice kernels by size and effectively separates whole rice from broken rice.
8 Color Sorting
Removes discolored, immature, or defective grains to improve the consistency and appearance of finished rice.
9 E-Weighing
Accurately measures the required quantity of finished rice for commercial packaging.
10 Rice Packing
Packs the finished rice into bags for storage, transportation, and retail sales.
Tell us your needs, and we’ll design a customized rice mill plant for you.
Mini Rice Mill Plant
6LN-20/15SFa Small Rice Mill Plant
Product Configuration:
- Full set of motor
- Cleaning and de-stoning machine
- Belt type mute huller
- Gravity type paddy separator
- Flat ground type broken rice sifter
- Low-temperature strong wind lengthening rice whitener
Technical parameters
| Capacity (kg/h) |
Power (kW) |
Speed of Main Spindle (r/min) |
Weight (kg) |
Dimension (L*W*H) |
| 1000 | 24.75 | 1380 | 1500 | 2510*2506*2800 |
6LN-18/15SFa Small Rice Mill Plant
Product Configuration:
- Full Motor Set
- Cleaner & Destoner
- Triple Low-Speed Elevator
- Belt-Type Silent Huller
- Gravity Paddy Separator
- Flat-Type Broken Rice Sifter
- Low-Temperature Rice Whitener
Technical parameters
| Capacity (kg/h) |
Power (kW) |
Speed of Main Spindle (r/min) |
Weight (kg) |
Dimension (L*W*H) |
| 1000 | 24.75 | 1380 | 1500 | 2510*2506*3095 |
6LN-20/15S Mini Rice Mill Plant
Product Introduction:
This machine is designed for rice milling. The combined rice mill integrates rice husking, paddy separation, and rice whitening into one complete rice milling system.
Main Features
- Short Processing Flow
- Low Residual Rice
- Energy Efficient
- Easy Operation
- High Rice Yield
- Efficient Chaff Separation
- Patented Design
Technical parameters
| Capacity (kg/h) |
Power (kW) |
Milled rice rate (kW) |
Speed of Main Spindle (r/min) |
Weight (kg) |
Dimension (L*W*H) |
| 1000 | 18.5 | ≥71 | 1350 | 700 | 1700*1700*2300 |
MLNJ-15/13 Mini Rice Mill Plant
Product Introduction:
This machine is designed for rice milling. The combined rice mill integrates husking, paddy separation, and rice whitening into one complete unit.
Main Features
- Compact Processing
- Easy Operation
- Energy Efficient
- High Rice Yield
- Efficient Chaff Separation
- Complete Milling Unit
- Patented Technology
Technical parameters
| Capacity (kg/h) |
Power (kW) |
Milled rice rate (kW) |
Speed of Main Spindle (r/min) |
Weight (kg) |
Dimension (L*W*H) |
| 600 | 15 | ≥71 | 1350 | 600 | 1600*920*2300 |
Start Your Mini Rice Milling Project
Individual Rice Milling Machines
MGMC13.8C Rice Polisher Machine
Product Introduction:
The Rice Polisher is designed to improve the surface finish and appearance of milled rice, making the grains smoother and brighter.
Main Features:
- Wear-Resistant Rollers
- Stainless Steel Sieves
- Uniform Water Spray
- Improved Rice Appearance
- Two-in-One Function
- Easy Integration
Technical parameters
| Capacity (kg/h) |
Power (kW) |
Speed of Main Spindle (r/min) |
Weight (kg) |
Dimension (L*W*H) |
| 1000 | 22 | 1078 | 430 | 1856*1572*1467 |
Paddy Cleaner And Destoner
Product Introduction:
The Grain Cleaner & Destoner is designed for cleaning raw grains and removing impurities and stones. It is suitable for small rice processing plants.
Main Features:
- Effective Cleaning
- Efficient Destoning
- Low Dust
- Easy Operation
- Compact Design
Technical parameters
| Capacity (kg/h) |
Power (kW) |
Speed of Main Spindle (r/min) |
Air volume(m3/h) (kg) |
Weight (kg) |
Dimension (L*W*H) |
| 1200-1500 | 3 | 250 | 2000 | 300 | 1500*1400*2400 |
MMJP 63*3 rice grader
Working Principle:
- Rice enters the grading chamber.
- Rotation and friction distribute the rice evenly.
- Three-layer sieves grade the rice continuously.
- Broken and whole rice are separated.
Key Features:
- Compact Design
- Stable Operation
- Efficient Grading
- Easy Maintenance
- Versatile Application
Technical parameters
| Capacity (kg/h) |
Power (kW) |
Speed of Main Spindle (r/min) |
Layer (kg) |
Weight (kg) |
Dimension (L*W*H) |
| 1050 | 0.75 | 150±15 | 3 | 415 | 1426*740*1276 |
Looking for Individual Rice Milling Equipment?
Why choose us?

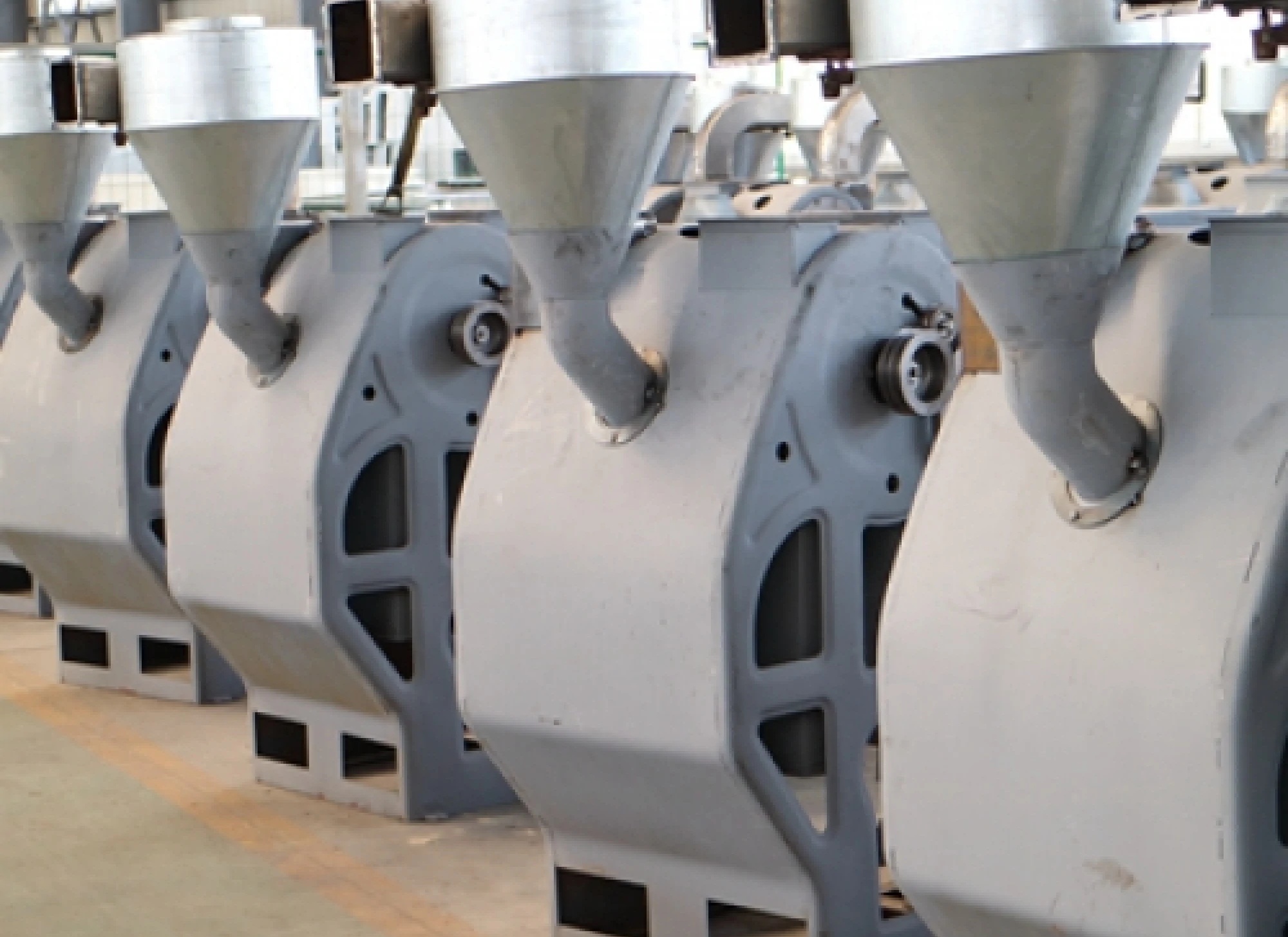

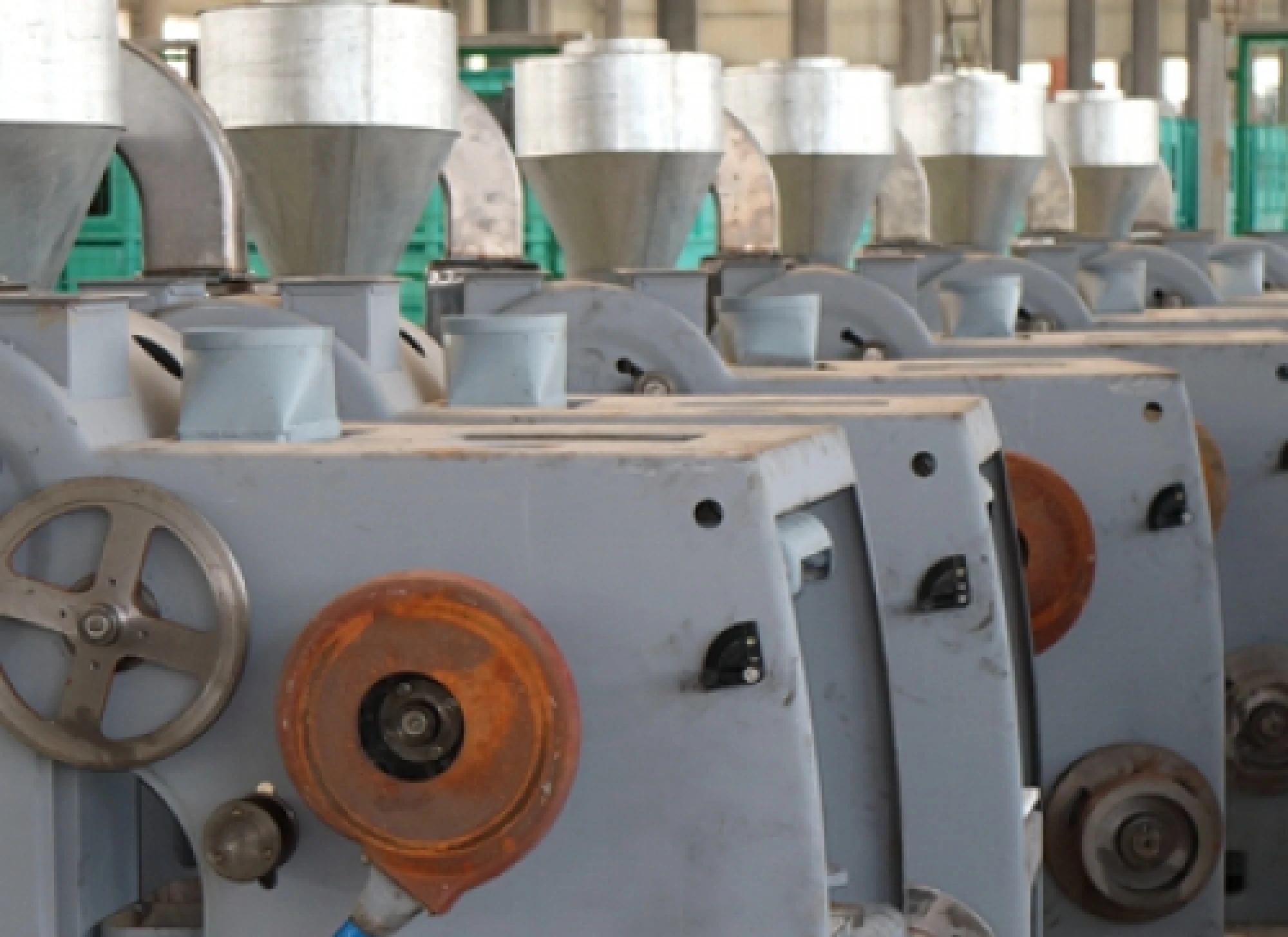

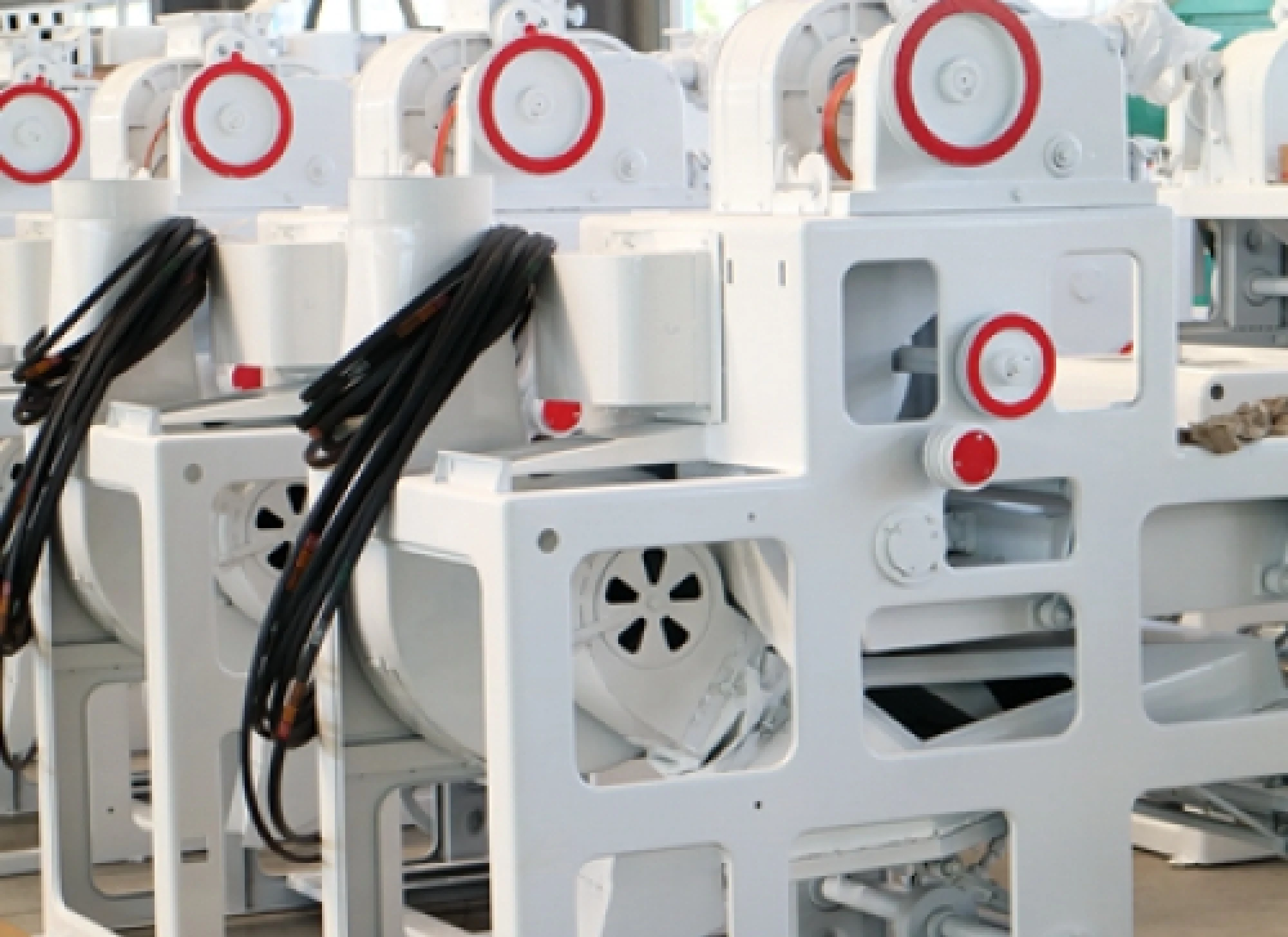

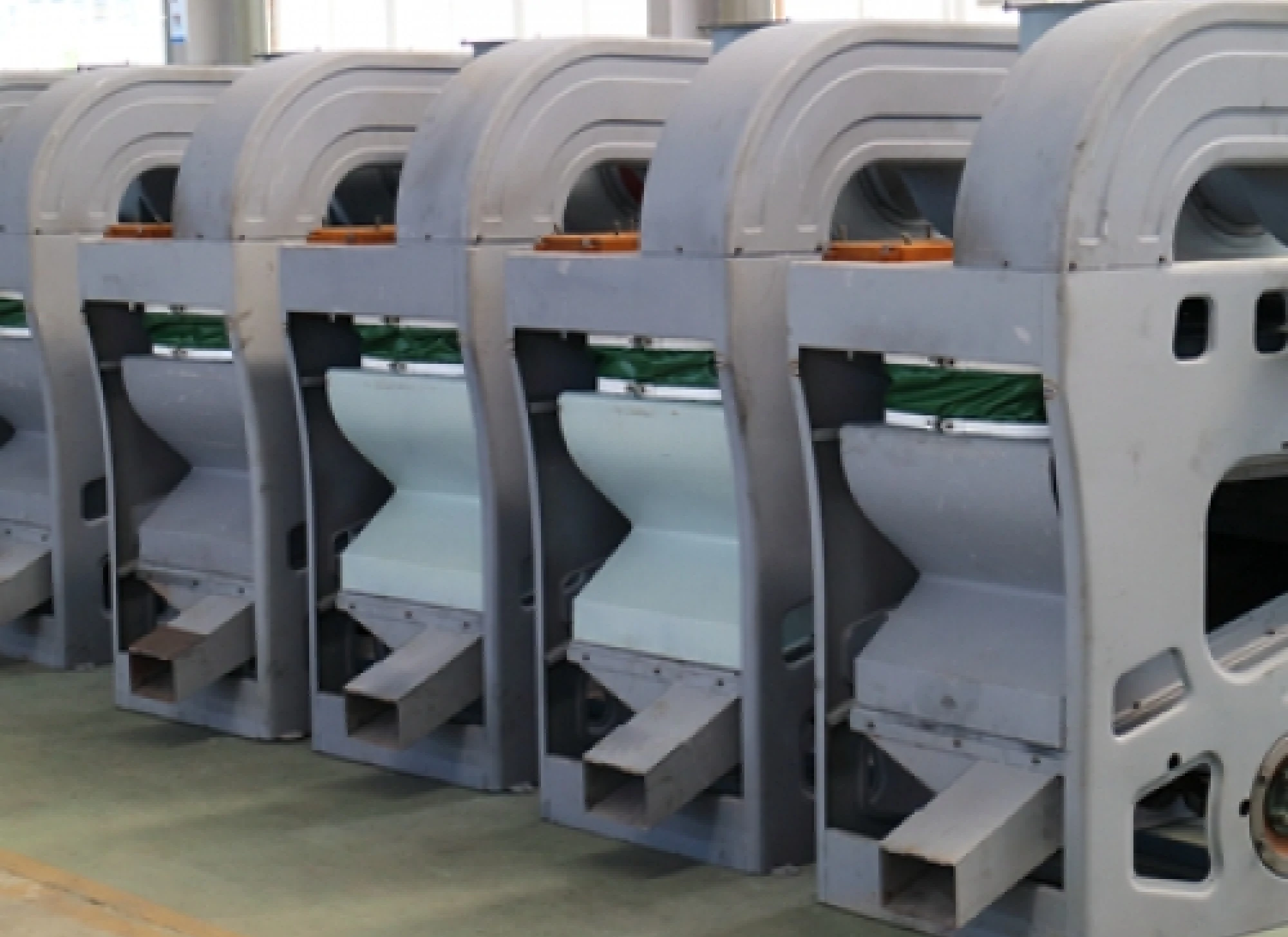

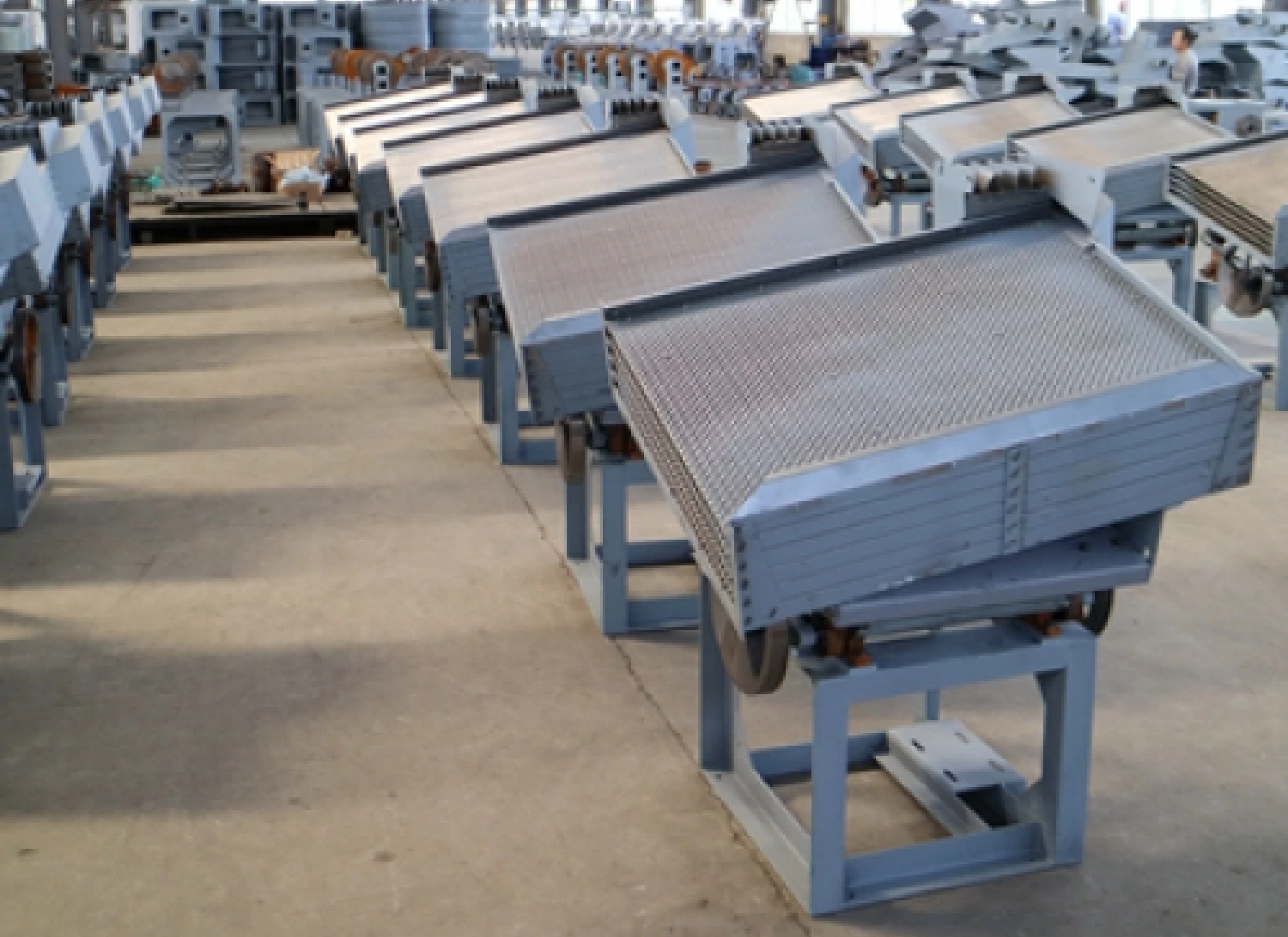

25 Years of Experience
OEM & ODM Available
We provide custom logos, colors, and configurations to meet your market needs, offering flexible solutions for your rice mill plant machines.

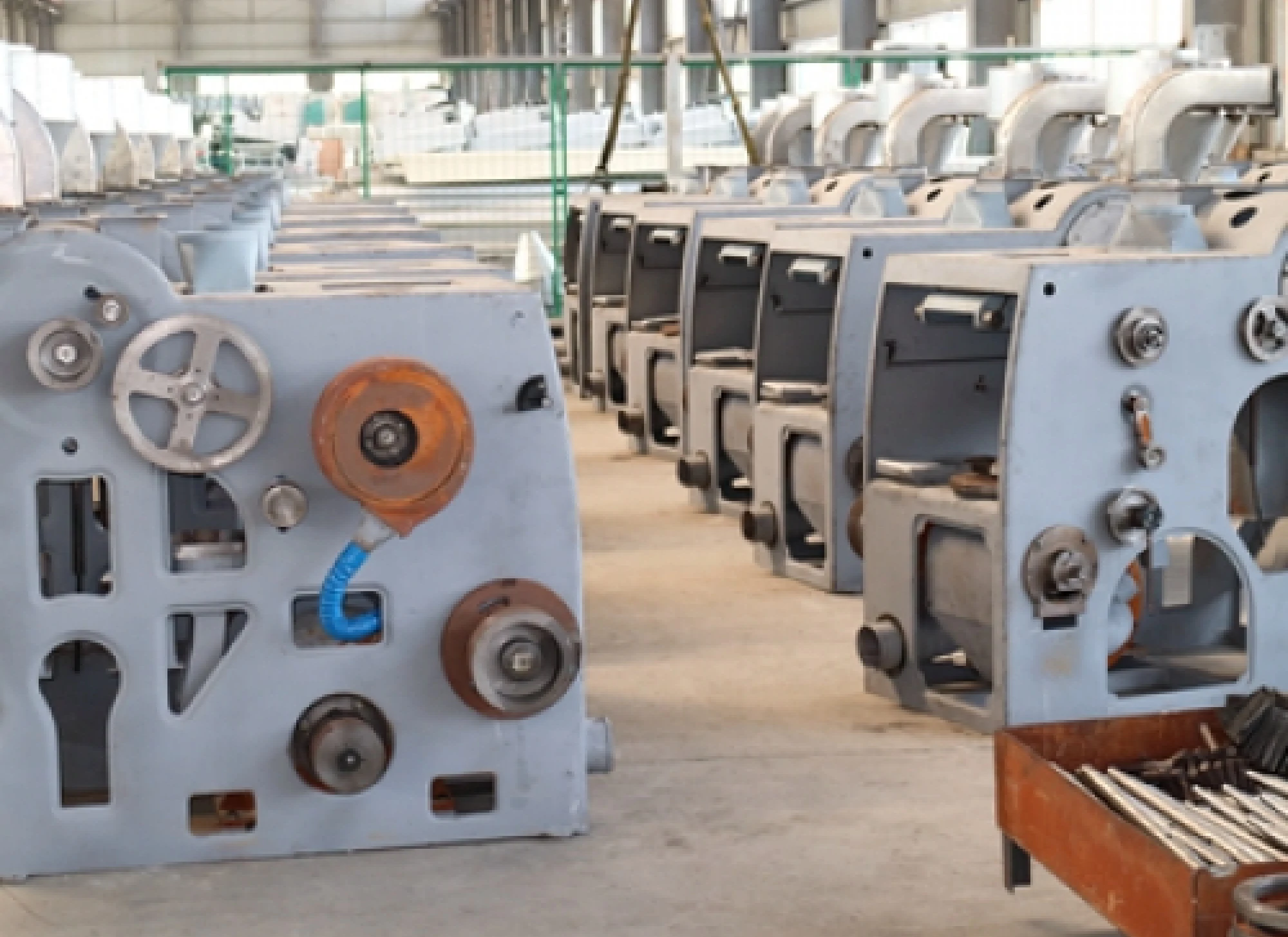

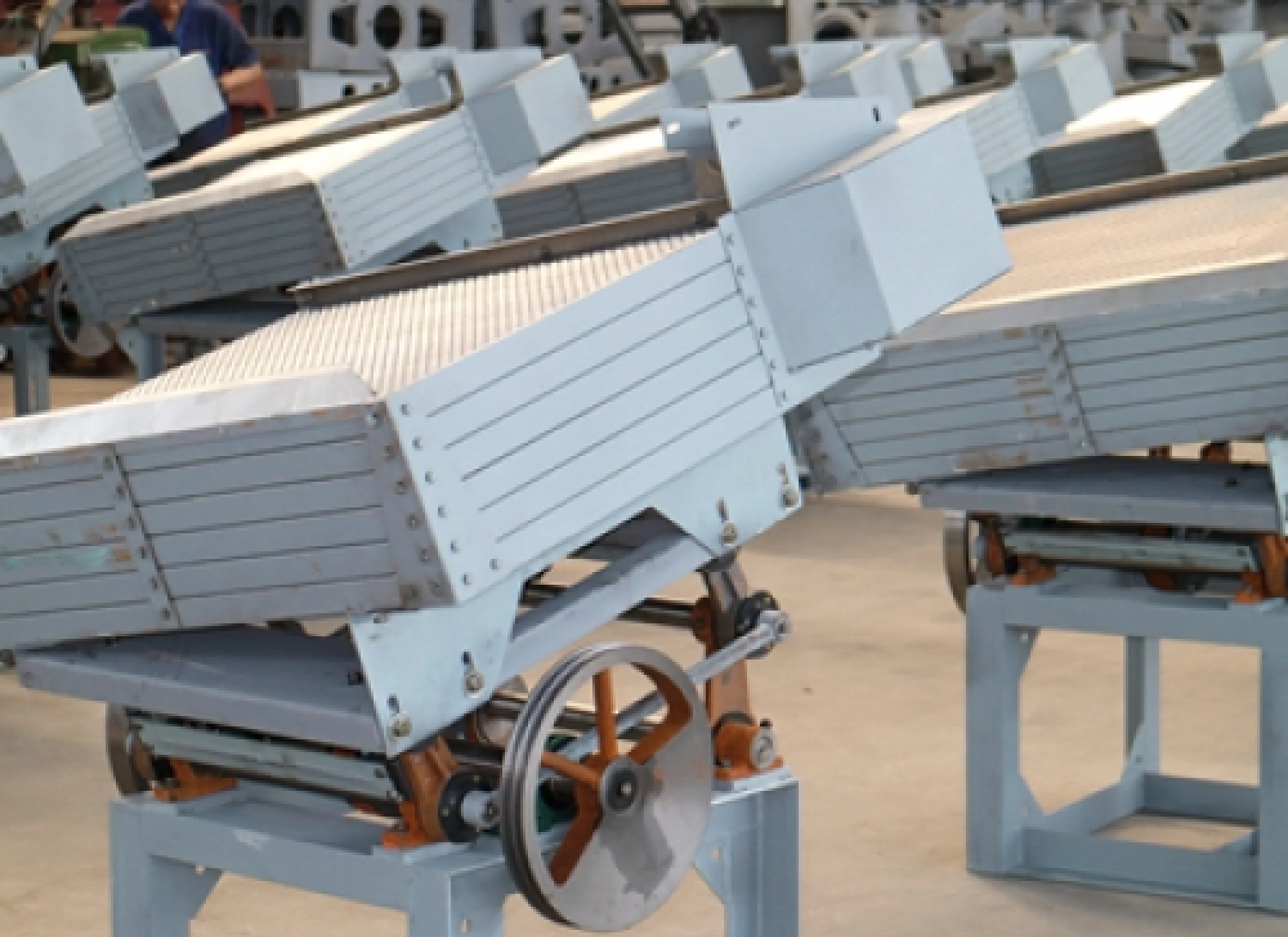

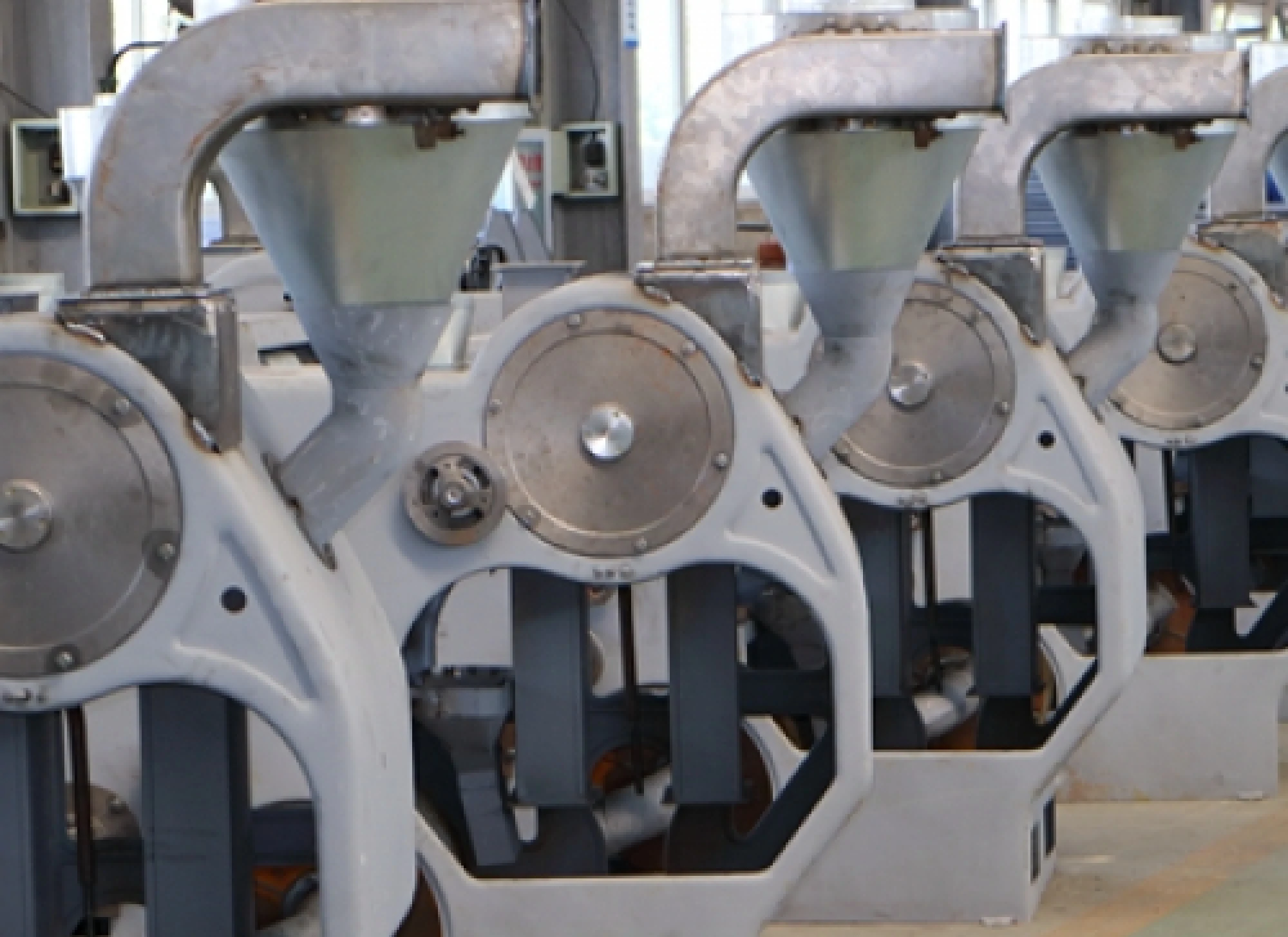

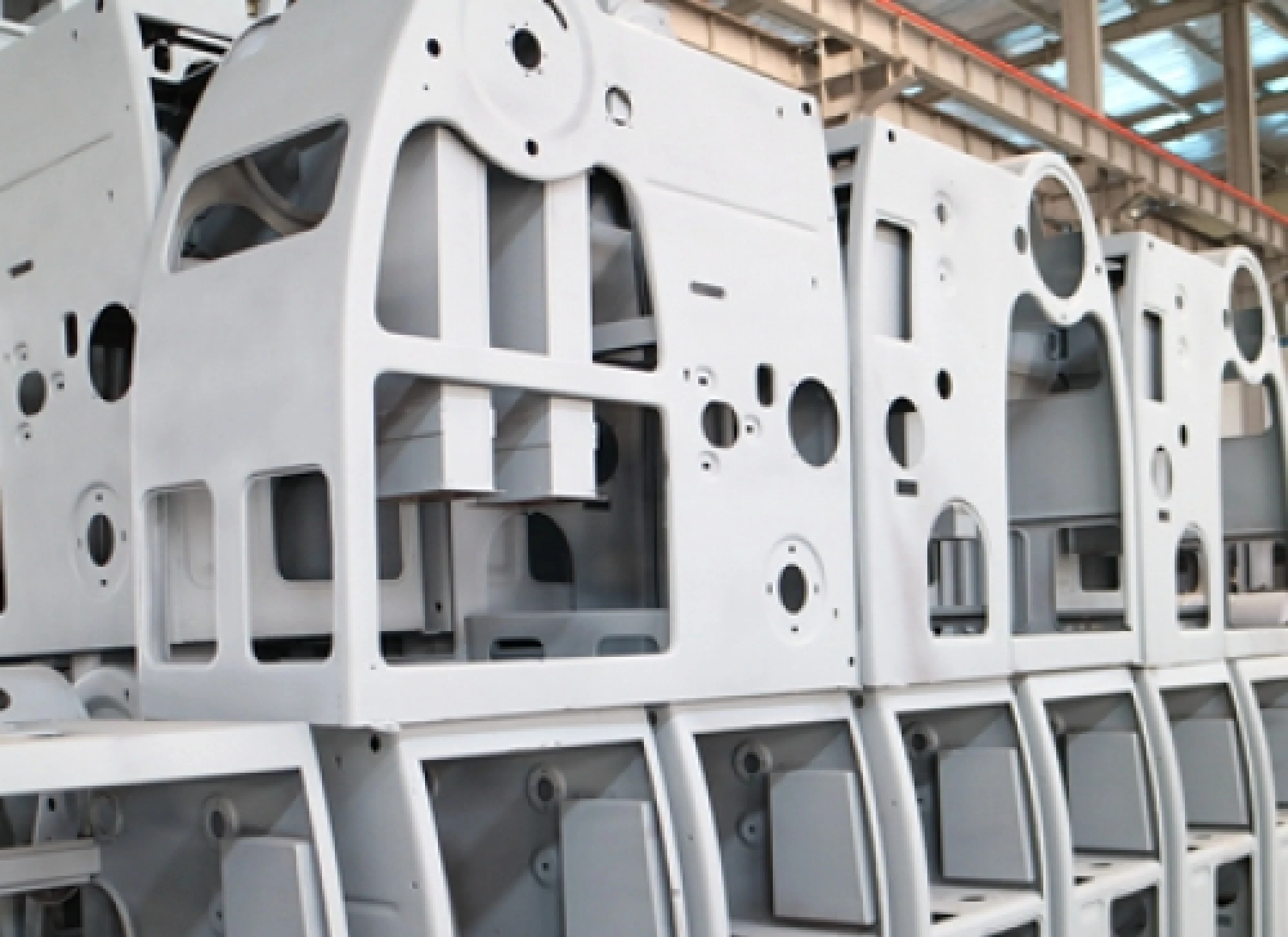

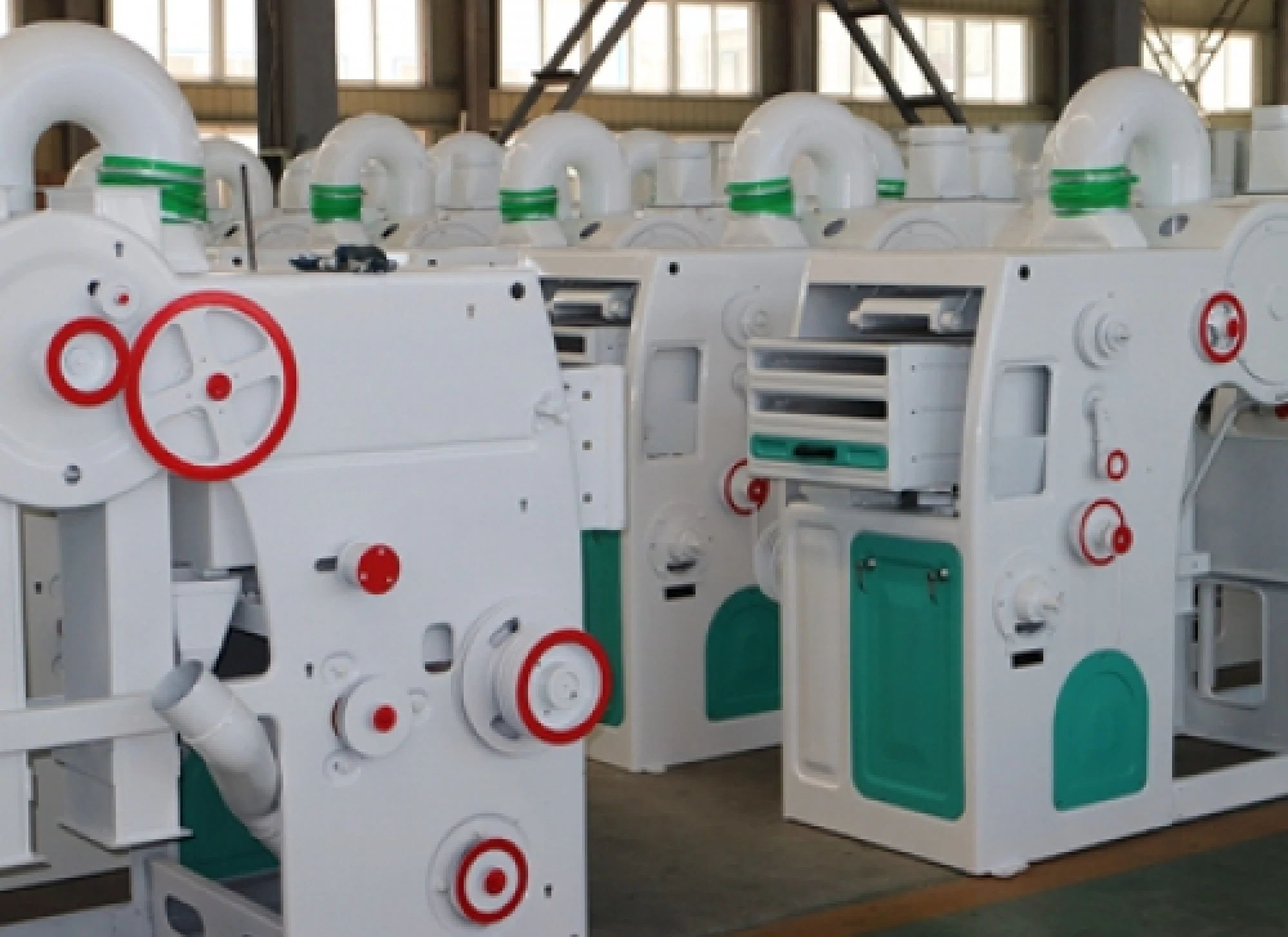

Advanced Manufacturing Capability
Proven Performance Worldwide
With an annual production capacity of 6,000+ sets, our rice milling equipment is trusted by customers across 5 continents.
Request An Instant Quote
Frequently Asked Questions
A rice mill factory is a facility where raw paddy is processed into high-quality milled rice for commercial use. A typical rice milling factory uses a series of machines to clean, destone, husk, whiten, polish, grade, and sometimes sort and package the rice.
Yes, a rice mill factory can be a profitable business with a reliable supply of paddy and strong local demand for milled rice. Profitability depends on processing capacity, rice recovery, operating costs, and market prices. A well-designed rice mill plant with suitable rice mill plant machinery and an efficient rice mill production line can improve rice quality, reduce processing losses, and increase overall returns.
The rice milling process typically involves 10 key rice processing steps: paddy cleaning, destoning, rice husking, paddy separation, rice whitening, rice polishing, rice grading, color sorting, e-weighing, and rice packing. These steps work together to remove impurities and husks, improve rice quality, separate whole and broken grains, and prepare the finished rice for storage, transportation, and sale.
A rice mill plant is a complete processing system that converts raw paddy into finished milled rice through processes such as cleaning, husking, whitening, polishing, grading, and packing. Depending on production needs, it can be configured as a complete rice mill plant for commercial-scale processing or a mini rice mill plant for small-scale rice milling operations.
The rice mill plant cost is typically around USD 7,000–10,000, depending on the processing capacity and equipment configuration. The final price can be adjusted according to your needs by adding or removing machines, such as cleaners, destoners, polishers, graders, color sorters, and packing systems. Therefore, the actual cost will vary based on your required capacity and rice quality.
